Unmanned Aerial Vehicle Sector
Low-Power Scenario Applications
GaN Power Transistor - Ceramic Package
| Product Model | Frequency (GHz) | Test Frequency Point (GHz) | Output Power (W) | Drain Efficiency (%) | Gain (dB) | Operating Voltage (V) | Match Type | Package Type |
| GLSA3P0040BT | DC-3.0 | 2 | 45 | 62 | 16.5 | 28 | Pre-Matched | Ceramic |
| GLSD6P0005AN | DC-6.0 | 4.4 | 5 | 47 | 13.6 | 28 | Pre-Matched | Ceramic |
| GLSD6P0015AL | DC-6.0 | 3.3 | 15 | 75 | 16 | 28 | Unmatched | Ceramic |
| GLSD6P0025BN | DC-6.0 | 2.45 | 26 | 80 | 18.2 | 28 | Unmatched | Ceramic |
| GLSA6P0040BT | DC-6.0 | 5.6 | 35 | 56 | 13.7 | 28 | Pre-Matched | Ceramic |
| GLSA6P0035AT | 0.5~6.0 | 3.4 | 22 | 36 | 8.4 | 32 | Pre-Matched | Ceramic |
| GLSA2P7040AT | 1.8~2.7 | 2.3 | 45 | 59 | 14.3 | 28 | Pre-Matched | Ceramic |

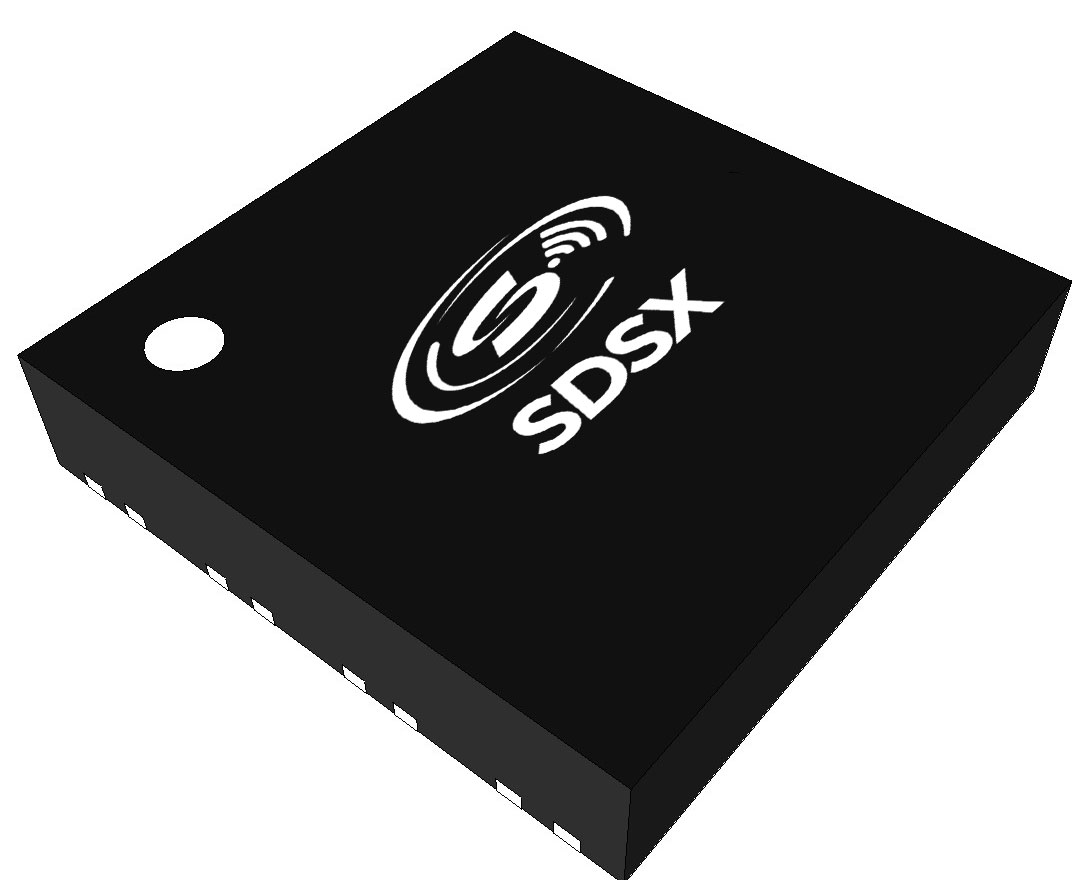

GaN Power Transistor - Plastic-Package
| Product Model | Frequency (GHz) | Test Frequency Points (GHz) | Pout (W) | Drain Efficiency (%) | Gain (dB) | Operating Voltage (V) | Matching Type | Package Type |
| GLMA3P5005AD | 0.03~3.5 | 1.7 | 5 | 44.5 | 13.6 | 28 | Pre-Matching | DFN |
| GLMA5P0005AD | 3.7~5.0 | 4.3 | 5.7 | 53 | 12.4 | 28 | Pre-Matching | DFN |
| GLMA1P5015AD | 0.03~1.5 | 1 | 18 | 74.7 | 19.9 | 28 | Pre-Matching | DFN |
| GLMA3P0015AD | 0.03~3 | 1.3 | 16 | 58.4 | 14 | 28 | Pre-Matching | DFN |
| GLMA2P7025AD | 0.03~2.7 | 1.9 | 20 | 51 | 12.9 | 28 | Pre-Matching | DFN |
GaN Internally-Matched Power Amplifier
| Product Model | Frequency (GHz) | Test Frequency Points (GHz) | Pout (W) | Drain Efficiency (%) | Gain (dB) | Operating Voltage (V) | Matching Type | Package Type |
| GLP0427015AZ | 0.4～2.7 | 1.6 | 20 | 47 | 12 | 28 | Fully Matched | Ceramic |
GaN Power Transistor - Demo
| Product Model | Frequency (GHz) | Test Frequency Points (GHz) | Pout (W) | Drain Efficiency (%) | Gain (dB) | Operating Voltage (V) |
| GLMA3P0015AD-A5 | 0.03~3 | 2 | 16 | 57 | 15 | 28 |
| GLMA3P5005AD-A2 | 0.03~3.5 | 1.7 | 5 | 54 | 12.7 | 28 |
| GLP0427015AZ-A1 | 0.4~3 | 1.6 | 20 | 47 | 12 | 28 |
| GLSA3P0040BT-A3 | 0.4~3 | 1.6 | 23 | 37 | 12.7 | 28 |
| GLSA6P0035AT-A1 | 0.7~6 | 3.4 | 22 | 36 | 8.4 | 32 |
| GLMA2P7025AD-A1 | 0.9~3 | 1.9 | 20 | 51 | 12.9 | 28 |
| GLSA2P7040AT-A1 | 1.8~3 | 2.3 | 45 | 59 | 14.3 | 28 |
| GLSD6P0015AL-A4 | 3~4 | 3.5 | 18 | 65.4 | 15.2 | 28 |
| GLMA5P0005AD-A4 | 3.7~5 | 4.3 | 5.7 | 53 | 12.4 | 28 |
High-Power Scenario Applications
GaN Power Transistor - Ceramic Package
| Product Model | Frequency (GHz) | Test Frequency Point (GHz) | Output Power (W) | Drain Efficiency (%) | Gain (dB) | Operating Voltage (V) | Match Type | Package Type |
| GLSA3P0120AT | DC-2.5 | 1.2 | 88 | 65 | 13.2 | 28 | Pre-Matched | Ceramic |
| GLDD2P5180AF | DC-2.5 | 1 | 203 | 65 | 20.8 | 28 | Unmatched | Ceramic |
| GLSA4P0120AT | DC-3.6 | 3.4 | 123 | 53 | 14 | 28 | Pre-Matched | Ceramic |
| GLSA2P0060AT | 0.38-2.0 | 1.6 | 50 | 72 | 15.8 | 28 | Pre-Matched | Ceramic |
| GLSA5P0120AM | 4.4~5.0 | 5 | 120 | 55 | 15 | 28 | Pre-Matched | Ceramic |
| GLDA6P0100AM | 5.0~6.0 | 5.5 | 100 | 59 | 14.7 | 28 | Pre-Matched | Ceramic |
| GHDD1P0700AF | DC～1 | 0.4 | 263 | 60.4 | 17.2 | 28 | Unmatched | Ceramic |
GaN Internally-Matched Power Amplifier
| Product Model | Frequency (GHz) | Test Frequency Points (GHz) | Pout (W) | Drain Efficiency (%) | Gain (dB) | Operating Voltage (V) | Matching Type | Package Type |
| SK0013 | 2.0~6.0 | 4 | 50 | 37 | 9 | 28 | Fully Matched | Ceramic |
GaN Power Transistor - Demo
| Product Model | Frequency (GHz) | Test Frequency Points (GHz) | Pout (W) | Drain Efficiency (%) | Gain (dB) | Operating Voltage (V) |
| GLDD2P5180AF-A4 | 0.1~1 | 0.45 | 202 | 70.5 | 20.2 | 28 |
| GLMA3P0015AD-A5 | 0.03~3 | 2 | 16 | 57 | 15 | 28 |
| GLMA3P5005AD-A2 | 0.03~3.5 | 1.7 | 5 | 54 | 12.7 | 28 |
| GLSA2P0060AT-A3 | 0.4~2 | 1.2 | 76 | 69.6 | 15.5 | 28 |
| GLSA3P0120AT-A1 | 0.4~2 | 1.2 | 88 | 65 | 13.2 | 28 |
| GLP0427015AZ-A1 | 0.4~3 | 1.6 | 20 | 47 | 12 | 28 |
| GLSA3P0040BT-A3 | 0.4~3 | 1.6 | 23 | 37 | 12.7 | 28 |
| GLSA3P0120AT-A6 | 0.5~3 | 1.5 | 88 | 54 | 11.2 | 28 |
| GLSA6P0035AT-A1 | 0.7~6 | 3.4 | 22 | 36 | 8.4 | 32 |
| GLDD2P5180AF-A1 | 0.9~1.5 | 1 | 203 | 65 | 20.8 | 28 |
| GLMA2P7025AD-A1 | 0.9~3 | 1.9 | 20 | 51 | 12.9 | 28 |
| GLSA2P7040AT-A1 | 1.8~3 | 2.3 | 45 | 59 | 14.3 | 28 |
| SK0013-A1 | 2~6 | 4 | 55 | 37 | 12 | 28 |
| GLSA4P0120AT-A1 | 3~4 | 3.5 | 115 | 55 | 13.4 | 28 |
| GLSA3P7080AT-A1 | 3~4 | 3.5 | 77.5 | 57.6 | 11.8 | 28 |
| GLSD6P0015AL-A4 | 3~4 | 3.5 | 18 | 65.4 | 15.2 | 28 |
| GLMA5P0005AD-A4 | 3.7~5 | 4.3 | 5.7 | 53 | 12.4 | 28 |
| GLSA5P0120AM-A1 | 4.5~5 | 4.7 | 125 | 56 | 14.7 | 28 |
| GLDA6P0100AM-A2 | 4.9~6.1 | 5.5 | 79 | 50 | 11 | 28 |
| GHDD1P0700AF-A2 | 0.1~1 | 0.4 | 263 | 60.4 | 17.2 | 28 |
